Pipes Installation Process
Being effortless, Secure, and Tool-Based. Insta Pressfit® innovative approach to joining stainless steel water pipes and fittings eliminates the complexities of welding or threading. Utilizing hydraulic or electro-mechanical pressing tools, our process ensures swift and secure connections, enhancing both efficiency and safety. Experience a seamless installation that's durable, reliable, and completed in a fraction of the time with Insta pressfit revolutionary joining technique.
Check the below mentioned easy steps for the complete installation process, along with the crimping tool details.
Step 1
Step 2
Cut The Pipe In Round Shape.
Step 3
The edges of pipe should be smooth to prevent damage to the gasket.
Step 4
Insert The Pipe Till The End of The Fitting.
Step 5
Keep The Fitting Collar In The Middle of Tool.
Step 6
Bingo! It's Done
Step 7
Look at the IUF Indicator

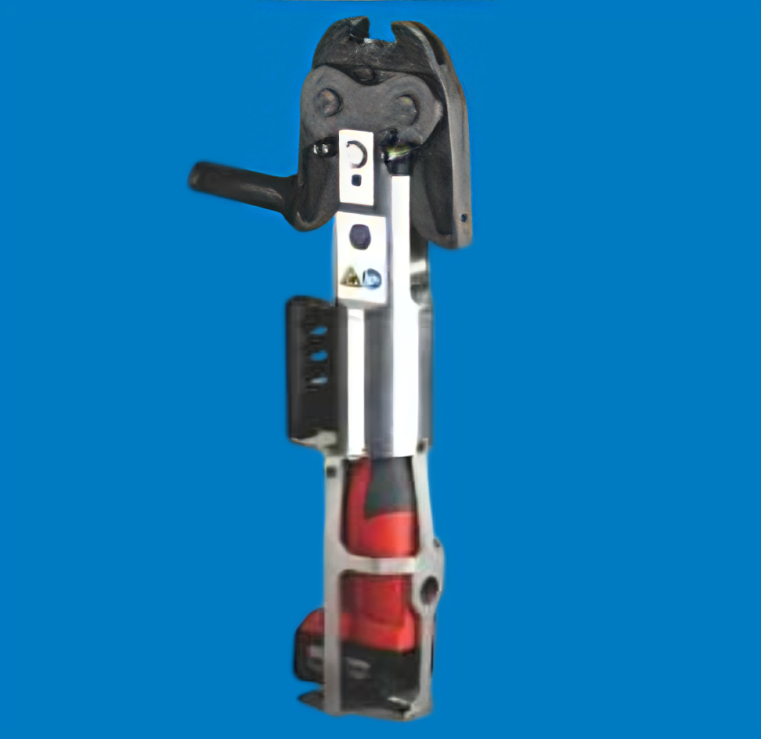

Crimping Tool
Check details below

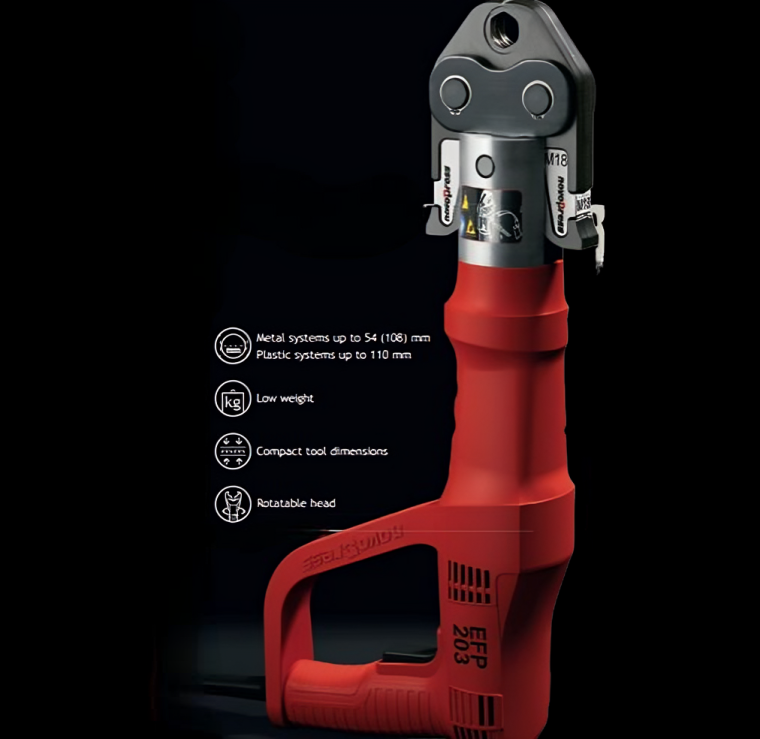

Crimping Tool Details
Fast and economic operation
The pressing tool ensures a fast and economic operation thanks to the automatic return and the short pressing cycles. After a successful completed pressing cycle the piston returns in its starting position and is ready for the next pressing, without any manual conversion.
Scope of application:
Drinking water, gas and heating installations, industry and commercial applications and many more.- Suitable for all authorized jaws of other system manufacturers in the market.
- All common profiles for metal and plastic systems available.
| Dimensions | Metal pipe up to 54 mm (depending on system up to 108 mm) |
|---|---|
| Weight | 3.0 kg approximately |
| Length | 395 mm |
| Width | 81 mm |
| Height | 203 mm |
| Power consumption | 450 W |
| Piston force | 32 kN |
| Piston stroke | 40 mm |
