Stainless Steel Pipes Installation Process

Being effortless, Secure, and Tool-Based. Insta Pressfit® innovative approach to joining stainless steel water pipes and fittings eliminates the complexities of welding or threading. Utilizing hydraulic or electro-mechanical pressing tools, our process ensures swift and secure connections, enhancing both efficiency and safety. Experience a seamless installation that's durable, reliable, and completed in a fraction of the time with Insta pressfit revolutionary joining technique.

6 Steps Installation
step one

High Speed Blade To Cut The Pipe

step two

Cut The Pipe In Round Shape

step three

The edges of pipe should be smooth to prevent damage to the gasket

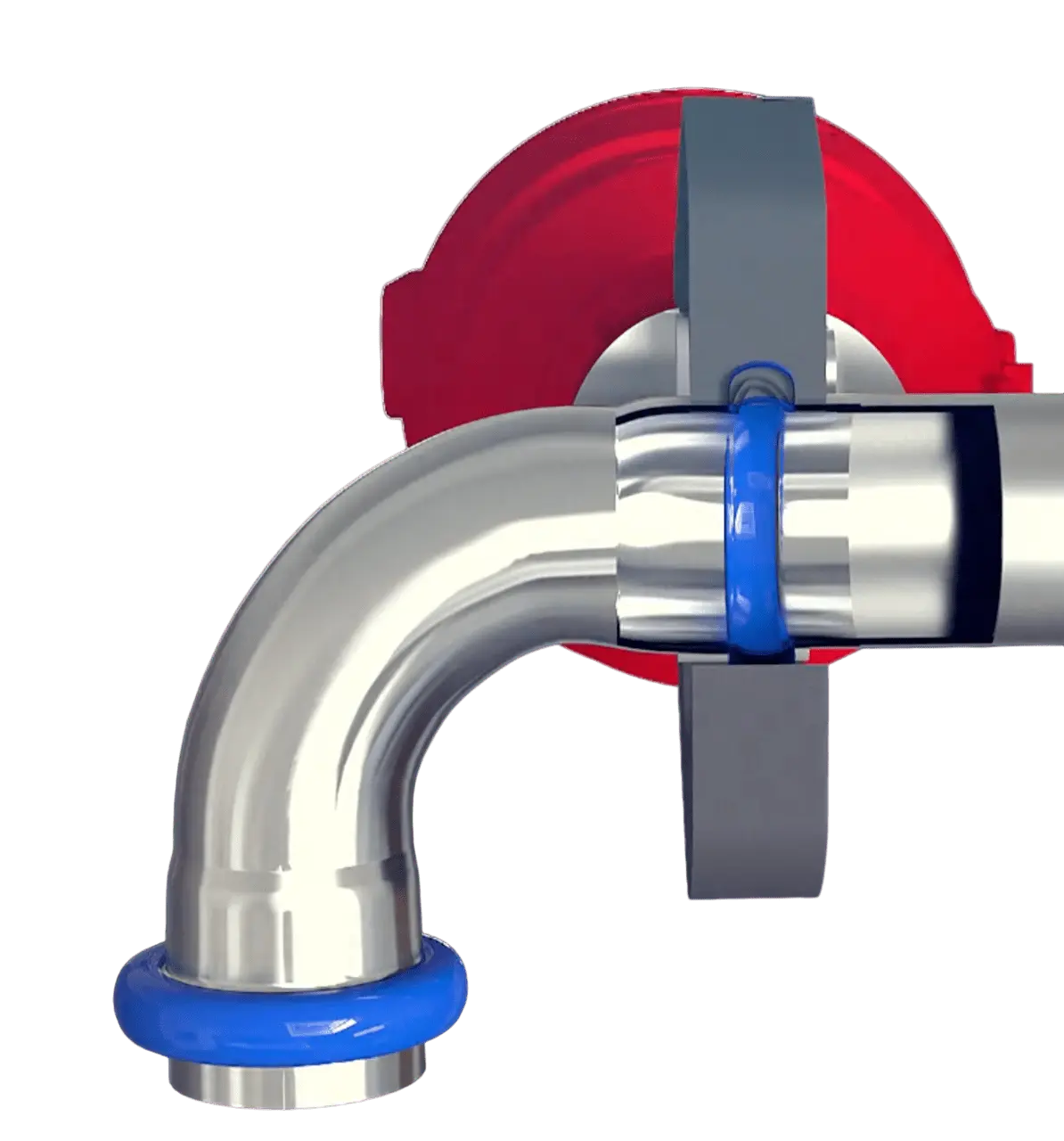

Step Four

Insert The Pipe Till The End of The Fitting

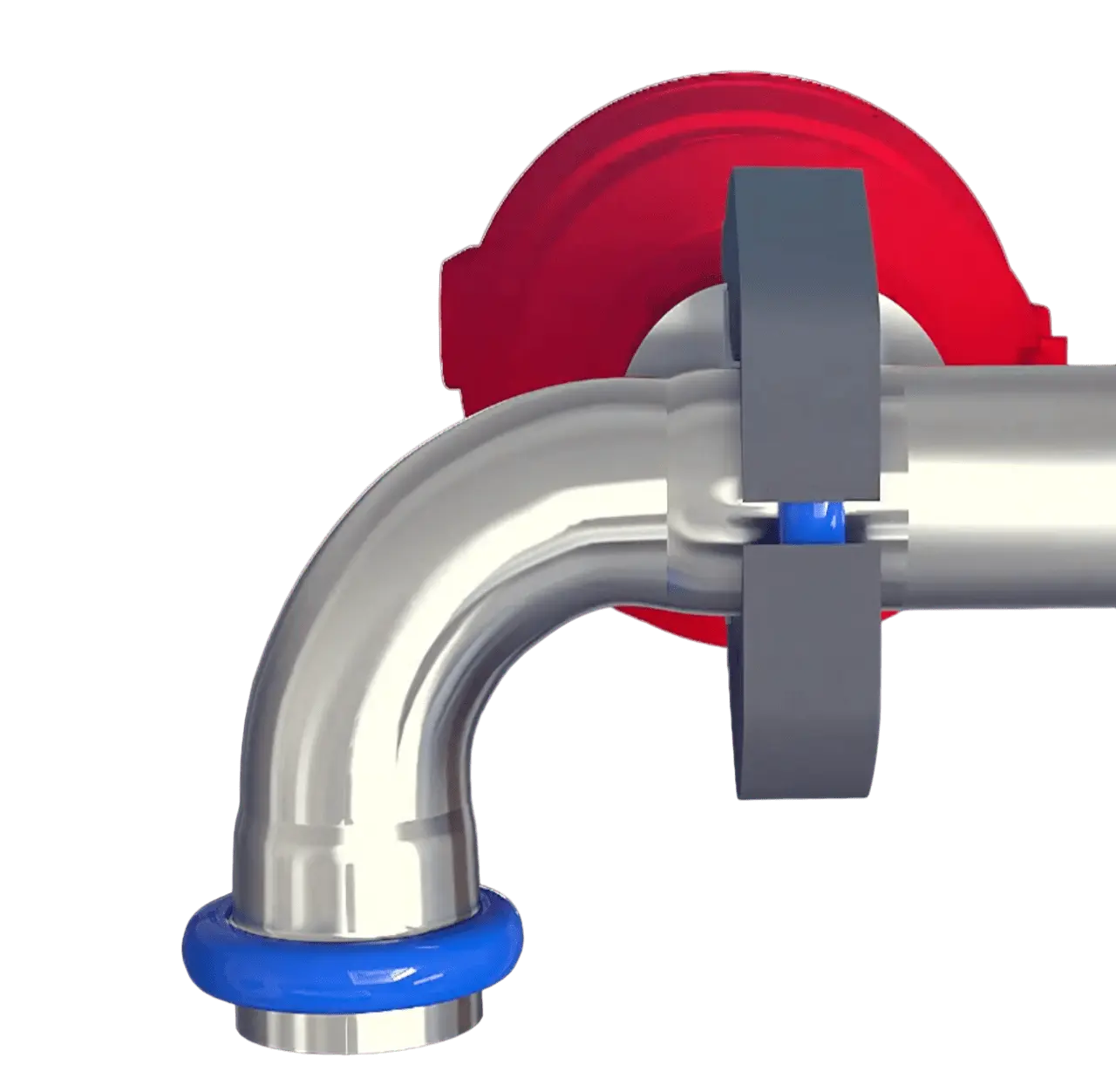

step five

Keep The Fitting Collar In The Middle of Tool

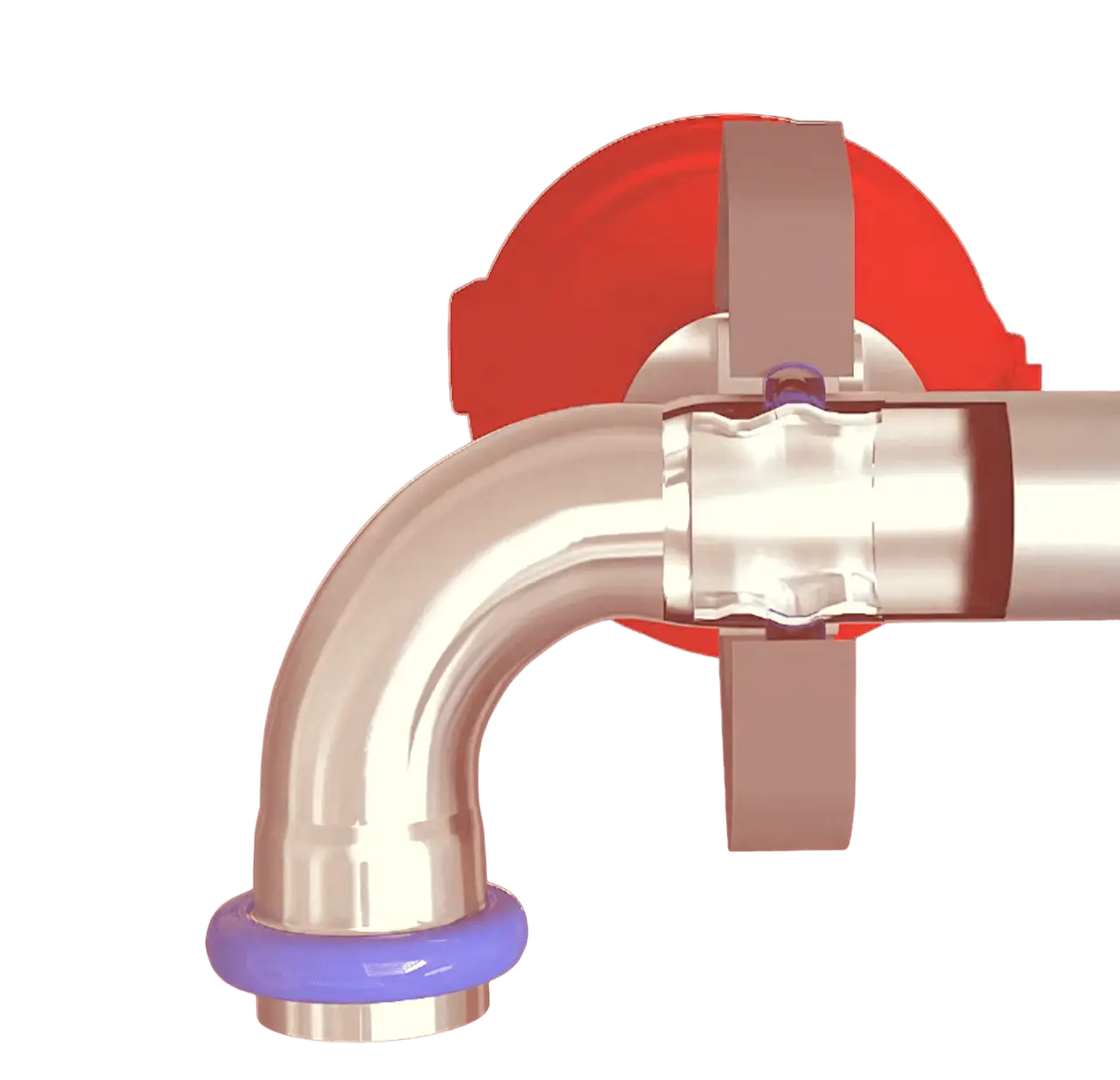

step 6

Bingo! It's Done

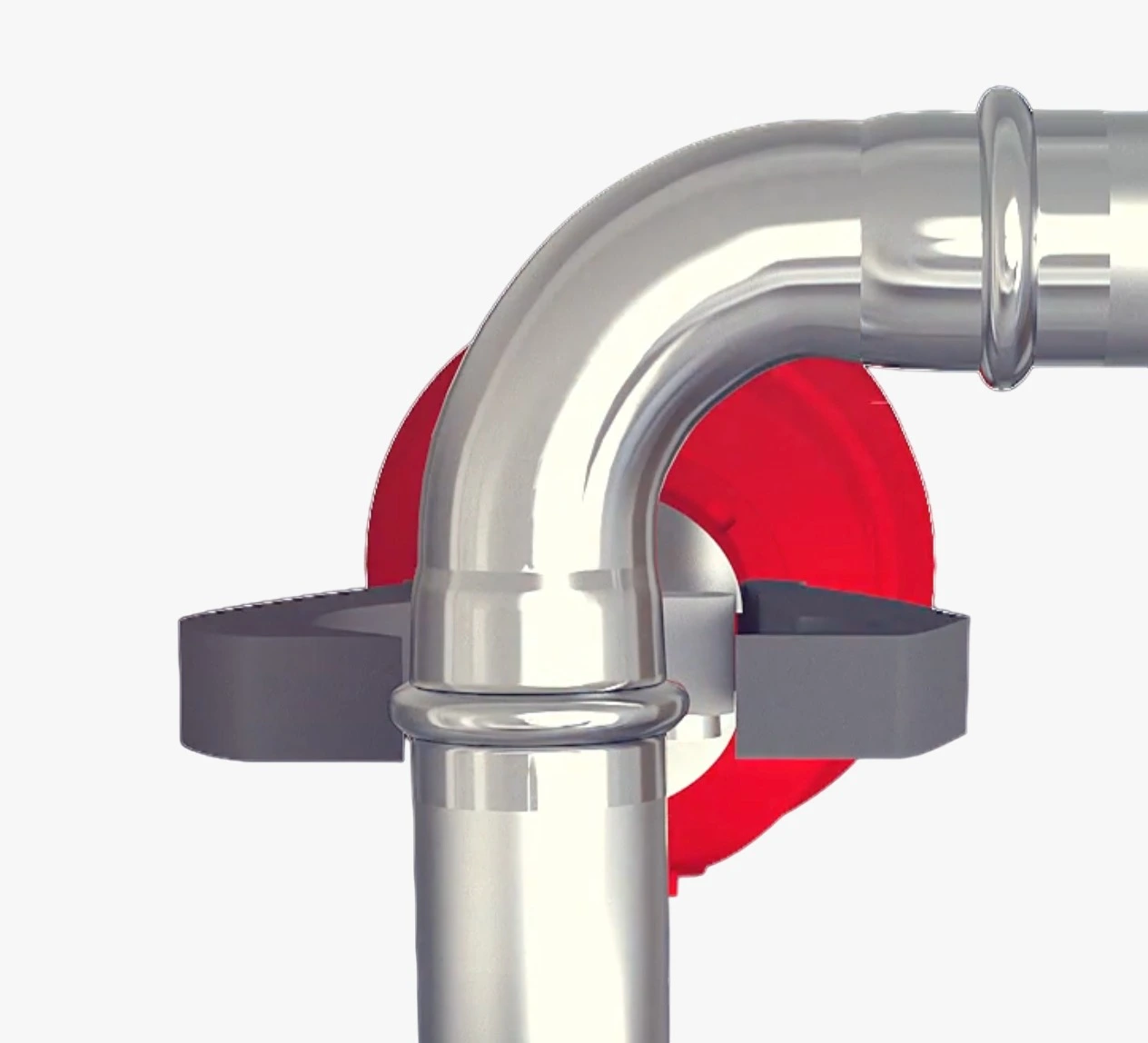

Step 7

Look at the IUF Inducatior

Crimping Tool Details
Crimping range Crimping force Crimping type Stroke
Cu16-43mm 2 16T Hexagon crimping 20mm
*pipe as pre JIS 3448
S. S 316L/304 Grade Standard Pipe Fittings
Standard JIS-3448 JWWAG-116
crimping tool
