Testing
& Quality
Engineering confidence into every pipe, fitting and connection through rigorous testing, inspection and verification.
Parameters
Focus
TESTING
QUALITY
ASSURANCE
Testing & Quality Assurance of
Stainless Steel Crimping Fittings
InstaPressFit® Stainless Steel Crimping Fitting undergoes rigorous testing for pressure resistance, leak tightness, mechanical strength, corrosion resistance, temperature cycling, vibration endurance, and material verification to ensure long-term performance, safety, and reliability in residential, commercial, and industrial plumbing systems.
| Test Type | Purpose | Typical Test Parameters | Expected Result |
|---|---|---|---|
| Hydraulic Pressure Test | Verify pressure holding capability | Water pressure up to 2.5 MPa (25 bar) or higher | No leakage, deformation or failure |
| Air Tightness Test | Check sealing integrity | Compressed air under specified pressure | Zero air leakage |
| Leakage Detection Test | Detect unpressed or improperly pressed joints | Low-pressure water or air testing | Unpressed joints visible for easy detection |
| Pull-Out Resistance Test | Measure mechanical grip strength | Axial tensile load applied | Joint remains secure without separation |
| Vibration Resistance Test | Simulate real-world movement and vibration | Repeated vibration cycles under pressure | No loosening or leakage |
| Thermal Cycling Test | Assess hot and cold temperature durability | Continuous hot-cold water cycles | No cracks, leakage or seal degradation |
| Pressure Shock Test | Evaluate sudden pressure fluctuations | Repeated pressure surges | Joint integrity maintained |
| Bending Deflection Test | Verify performance under pipe movement | Controlled bending under pressure | No leakage or joint failure |
| Vacuum / Negative Pressure Test | Test sealing under suction conditions | Negative pressure environment | No air ingress |
| Corrosion Resistance Test | Ensure long-term durability | Salt spray or chemical exposure testing | No significant corrosion |
| O-Ring Performance Test | Validate sealing element durability | Temperature, pressure & ageing simulation | Long-term sealing performance maintained |
| Eddy Current Inspection | Detect manufacturing defects | Non-destructive electronic inspection | Defect-free fitting body |
| Dimensional Accuracy Test | Verify manufacturing precision | Measurement against ISO / ISO tolerances | Consistent fit and crimp quality |
| Material Composition Analysis | Confirm stainless steel grade | Spectrometer analysis of SS 304 / SS 316L | Material meets specification |
| Annealing & Weld Integrity Test | Verify metallurgical strength | Heat treatment and weld examination | Uniform structure and strength |
| High Temperature Resistance Test | Evaluate extreme heat performance | Elevated temperature exposure | No loss of sealing or structural integrity |
Quality testing coverage for stainless steel crimping fittings
Major testing categories used to verify performance, safety and durability.
Stainless Steel TIG Welded Pipe
Testing & Marking Chart
InstaPressFit® stainless steel TIG pipe undergoes rigorous material verification, weld inspection, eddy current testing, hydrostatic pressure testing, dimensional inspection, and corrosion resistance evaluation. Each pipe is permanently marked with grade, size, standard, heat number, batch number, and BIS licence details to ensure complete quality assurance and traceability.
| TEST / INSPECTION | PURPOSE | METHOD | ACCEPTANCE CRITERIA |
|---|---|---|---|
| Raw Material Verification | Confirm stainless steel grade | PMI / Spectrometer Analysis | Matches SS 304 / SS 316L specification |
| Chemical Composition Test | Verify alloy chemistry | Laboratory analysis | Within standard limits |
| Dimensional Inspection | Check OD, wall thickness & length | Precision measuring instruments | Within specified tolerance |
| Visual Surface Inspection | Detect dents, scratches, weld defects | 100% visual inspection | Smooth, defect free surface |
| Weld Seam Inspection | Verify weld quality | Visual & NDT examination | No cracks or discontinuities |
| Eddy Current Test (ECT) | Detect weld and surface defects | Non-destructive testing | Defect-free pipe |
| Hydrostatic Pressure Test | Verify pressure resistance | Water pressure testing | No leakage or deformation |
| Flanging Test | Verify formability | Pipe end expansion | No splitting or failure |
| Reverse Flattening Test | Evaluate weld seam strength | Reverse compression test | Weld remains intact |
| Tensile Strength Test | Measure mechanical strength | Universal Testing Machine | Meets specified tensile values |
| Hardness Test | Verify material hardness | Rockwell / Vickers tester | Within standard range |
| Corrosion Resistance Test | Evaluate long-term durability | Salt spray / chemical testing | No significant corrosion |
| Surface Finish Inspection | Ensure premium finish | Roughness measurement | Meets specified finish |

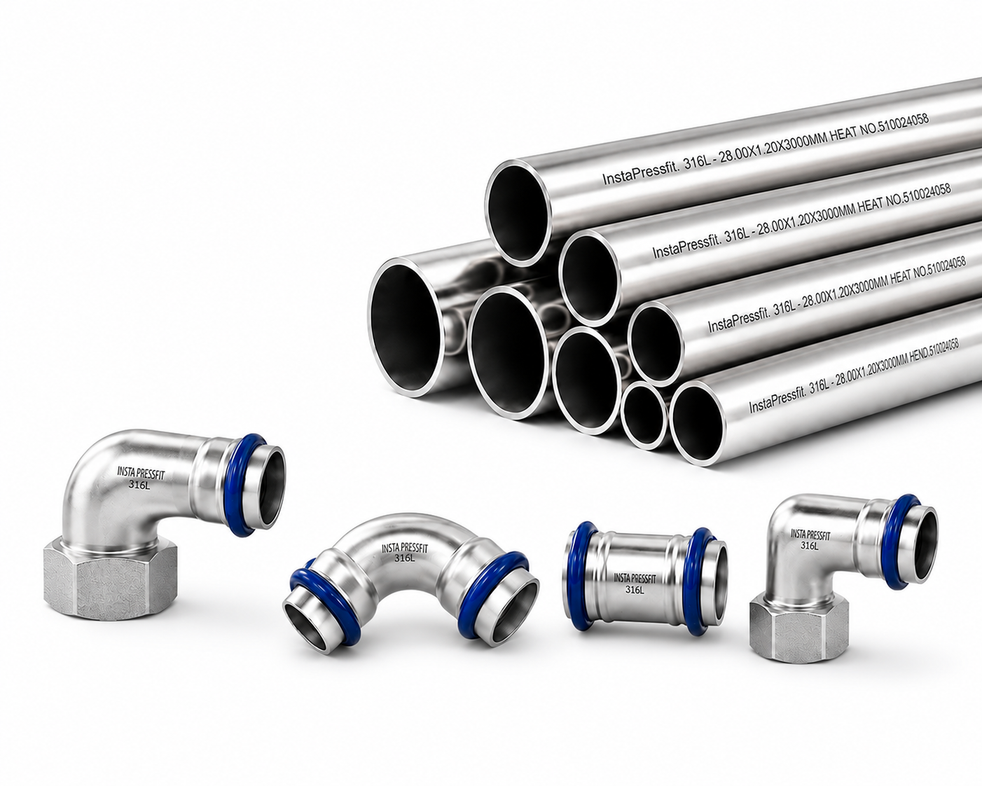

Pipe Stamping
Marking Information.
Every quality stainless steel pipe is permanently marked with key product information to support identification, traceability and specification verification.
INSTAPRESSFIT®
Quality assurance tests for stainless steel TIG pipes
Key inspections performed before approval for plumbing applications.
Tested for performance.
Built for confidence.
Explore our technical documentation, product specifications and installation information.
